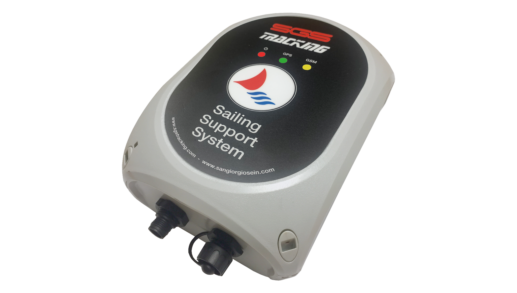

Sailing Support System
UNS20500 integrated wind analysis system specifically designed for regattas. It helps the definition of tactics indicating true wind direction and speed, prevailing wind speed and direction (5-15 min) and vector speed and direction. All data collected are displayed on portable devices using Wi-Fi connection and recorded for post regatta analysis.

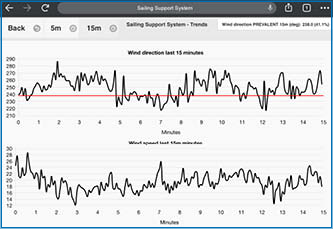

Trend of wind speed / direction
The trends page shows graphs of the prevailing wind direction and speed for the past 5 / 15 minutes.

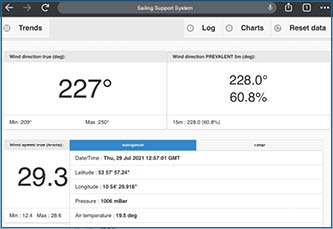

Real time wind information
The main wind monitoring page shows the current actual wind direction and speed combined with various statistics.
Sailing Support System
Sara Douglass
First in Hyeres world cup.

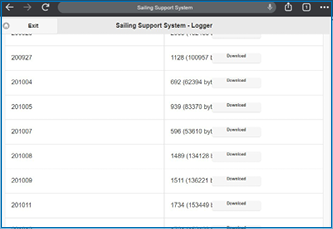

LOG page
Page where to download raw data downloads in "csv" format to copy into an excel file.
TECHNICAL FEATURES
180 x 130 x 77mm Apparent wind direction and speed Real wind direction and speed Air temperature Perceived air temperature Barometric pressure Relative humidity Global Positioning System (GPS) Wi-Fi NMEA0183 12/24V <250mA 0 +55°C IP66 The instruments includes 4 mounting brackets | ||
DOCUMENTS
DRAWING
MANUAL

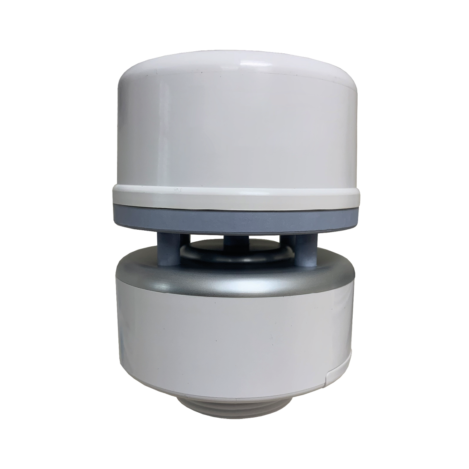

NAVIGATION AND WEATHER SENSOR
VSG40065
Combined electronic sensor that allow the measures of true and apparent wind speed and direction, barometric pressure, air temperature, vessel speed and direction. NMEA0183 (NMEA2000) output.
FUNCTION
Apparent wind direction and speed
True Wind Speed and Direction
Barometer
Temperature
GPS (Position - COG - SOG)
Telebussola
2 axis inclinometer
RANGE
Wind speed 0-78Kn
Wind direction 0-360°
Barometer 300-1100mbar
Temperature -40 +55°C
Inclinometer ±50°
SYSTEM KIT
The customer has the possibility to independently purchase 3 different kits according to his needs.
Basic Kit / Standard Kit / Complete Kit
